Published by Deep Tec Engineering (Pvt) Ltd 15 Jul 12:10 pm Malabe, Colombo
MP S1 Plus-Brief introduction - Dry run Protection Panel (ජල මට්ටමේ ආරක්ෂණ පැනලය)
Water level protection for both Well & Tank
( ළිඳ සහ ජල ටැංකි දෙකටම ජල මට්ටමේ ආරක්ෂාව)

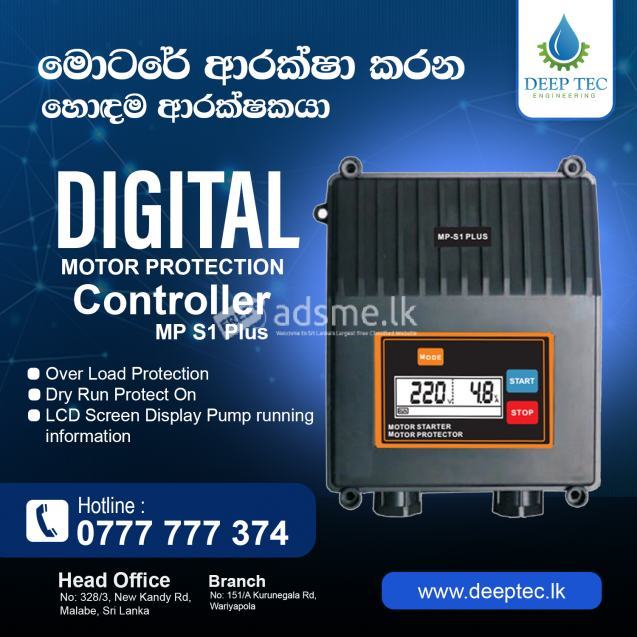

Intelligent Pump Motor Protocter model MP-S1 Plus is an easy to use, programmable protection device for direct start, single phase deep well submersible pump, centrifugal pump, pipeline pump motor etc with output power from 0.37KW-2.2KW (0.5HP-3HP)
Protection function (ආරක්ෂණ කාර්යය)
-Dry run ( ජලය නොමැතිව ක්රියාත්මක...)
-Over load
-Transient surge
-Under voltage
-Over voltage
-Pump stalled
-Short circuit
Application
Model MP-S1 Plus is useful in all cases we need to protect single pump managing its turn-on and turn off.
Typical usage scenarios include:
-Houses
-Flats
-Holidays houses
-Farms
-Water supply from wells
-Irrigations of greenhouses, gardens, agriculture
-Rain water reuse
-Industrial plants
-Waste water tank / Sewage sink
Main features:
-Auto / Manual switch
-Dynamic LCD displaying pump running state
-Protect the pump against many faults
-Push Button Calibration
-Reserved space for installing internal start capacitor of pump motor
